How To Read an Electric Motor Nameplate
Electric motor nameplates may seem like a minor consideration for original equipment manufacturers (OEMs), but these crucial labels determine how employees install, operate, and maintain essential motors. OEMs, engineers, and maintenance teams must understand these nameplates to stay compliant, ensure safety, and operate machinery at peak efficiency.
Motor nameplates provide a roadmap for proper usage. Overlooking key details or misreading them could lead to equipment failure and downtime.
In addition to understanding how to read an electric motor nameplate, choosing a durable material for the nameplate itself is crucial. If nameplates wear out, fade, or become illegible, OEMs will lose essential motor data.
Whether OEMs select a new motor, replace an old one, or need to ensure compliance with global standards, you need to understand how to navigate motor nameplate specifications with confidence. This guide will break down how to read an electric motor nameplate, troubleshoot common errors, and ensure long-term durability by recommending the best materials.
Electric motor nameplates are labels OEMs attach to electric motors to share essential information about the motor. The goal is to display the correct information for identifying the motor, properly installing it, and maintaining it according to the manufacturer’s instructions. Most nameplates are made from metal or a durable type of plastic that lasts the motor’s entire lifetime.
Electric motor nameplates play a role in three critical processes:
Electric motor nameplates are legally required and crucial for properly selecting the right motor for the customer’s use case. Understanding how to read and interpret this information ensures safe, efficient, and long-lasting motor performance.
Photo by Kateryna Babaieva from Pexels
While several standards govern the information included on an electric motor nameplate, these labels vary slightly depending on the manufacturer. However, most electric motor nameplates include the same components. Consult these guidelines to read the data on an electric motor nameplate correctly.
Most nameplates start with the manufacturer’s details and unique identifiers. Electric motor nameplates often list voltage as VOLTS, the rated load current as AMPS, and frequency as HZ.
This specifies the motor’s electrical input requirements. Common values include 230V, 460V, 400V, or 690V, with a frequency of 50 Hz or 60 Hz. However, some motors list multiple voltage options (such as 230V/460V), which require correct wiring configurations for each voltage.
Power rating is expressed as horsepower (HP) or kilowatts (kW) and indicates the motor’s mechanical power output. Manufacturers must choose the correct power rating to avoid overloading or underutilizing the motor.
While it’s best to choose a motor with some buffer, the power rating should be roughly in alignment with the motor’s designated use.
Revolutions per minute (RPM) indicates how fast the motor shaft rotates in one minute, which affects supply frequency and the number of poles. For example, a motor with 3,600 RPM requires two poles, while one with 900 RPM needs eight poles.
The efficiency rating (IE1–IE4) indicates how well the motor converts electrical energy into mechanical power. IE1 is the lowest rating, which is considered Standard Efficiency, and IE4 is the highest rating, or Super Premium Efficiency.
More efficient motors tend to be more expensive upfront, but upgrading from a lower-efficiency motor can significantly reduce energy costs in the long term.
Temperature information is crucial to the safe operation of any electric motor. If a motor overheats, the machine is at risk of going offline, not to mention the hazards of sudden equipment failure.
Insulation class and temperature ratings on an electric motor nameplate indicate the maximum allowable temperature increase inside the motor’s insulation.
For example, a Class A insulation class can withstand 221 degrees Fahrenheit, while Class H can withstand as much as 356 degrees Fahrenheit. Higher insulation classes (F, H) increase motor longevity in high-temperature environments.
For example, using a Class F motor instead of Class B in a hot environment can extend lifespan by 50% or more.
The table below shows the various insulation classes and their maximum temperatures.
| Insulation Class | Maximum Allowable Temperature (°C / °F) |
| Class A | 105°C / 221°F |
| Class B | 130°C / 266°F |
| Class F | 155°C / 311°F |
| Class H | 180°C / 356°F |
Service factor (SF) measures how well a motor can handle a temporary overload. This data is essential for safely operating a motor within its limits. For example, a motor with SF 1.15 can briefly handle 15% more load than its rated power.
However, motors can’t continuously run at their SF capacity because excessive heat will shorten their lifespan. Organizations must use motors below their SF capacity to ensure safe, long-term performance.
The table below provides a snapshot of the key components of an electric motor nameplate.
| Component | Description |
| Voltage (Volts) | The motor’s voltage requirement, often expressed as 230V, 460V, etc. |
| Frequency (Hz) | The motor’s frequency requirement, such as 50 Hz or 60 Hz. |
| Power Rating (HP or kW) | Indicates the motor’s power output (horsepower or kilowatts). |
| RPM (Revolutions per Minute) | The speed of the motor shaft in RPM. |
| Service Factor (SF) | Indicates how much overload the motor can handle temporarily. |
| Efficiency (IE1-IE4) | The motor’s energy efficiency level, with IE4 being the most efficient. |
| Insulation Class | The maximum temperature the motor’s insulation can withstand (Class A, F, H, etc.). |
| Temperature Rating | The motor’s maximum allowable temperature for safe operation. |

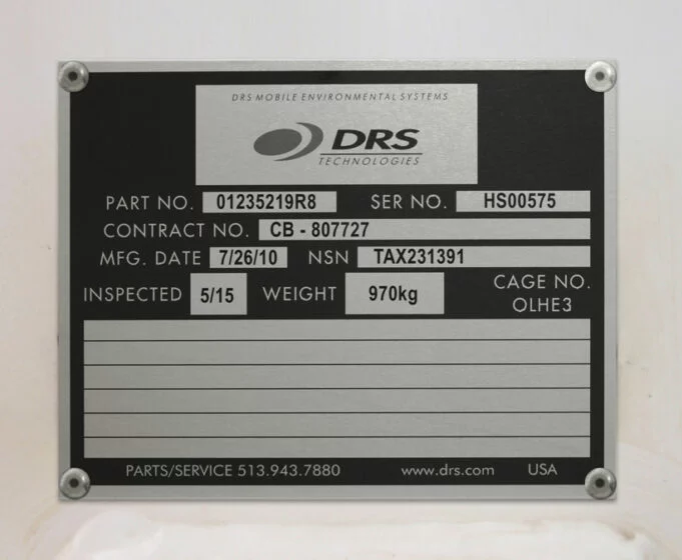

Electric motor nameplates are a permanent identification tag that provides essential information. Durability is crucial for several reasons, including:

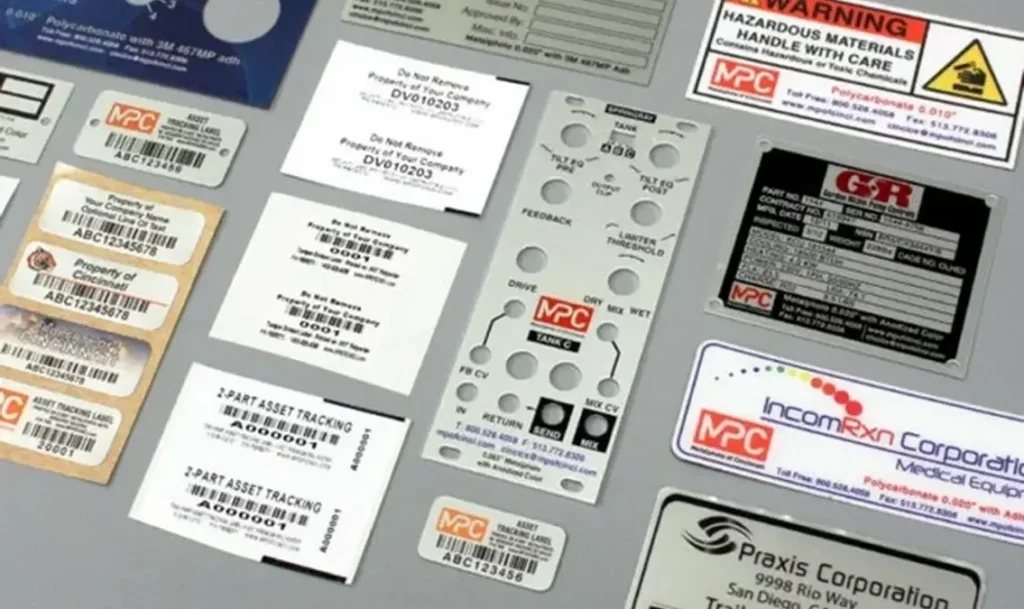

There are many electric motor nameplate substrates on the market, but nothing is as durable as Metalphoto® anodized aluminum. Metalphoto® is the gold standard for durability, designed to withstand extreme environments, harsh chemicals, UV exposure, and abrasion.
Unlike printed nameplates, Metalphoto® embeds the image into a layer of anodized aluminum, ensuring that it remains readable throughout the lifespan of your assets. It’s rated to last over 20 years in the most demanding applications, making it the best choice for electric motor nameplates.
Electric motor nameplates should include specifications that align with industry standards. While these vary by organization and industry, they provide consistency in motor selection and performance expectations.

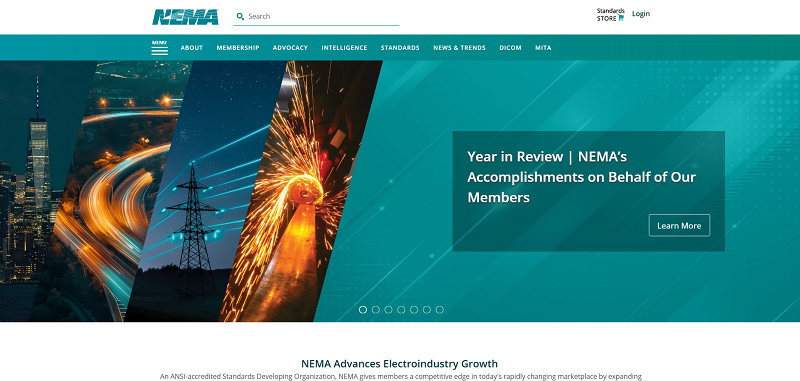

Electric motors follow NEMA (National Electrical Manufacturers Association) or IEC (International Electrotechnical Commission) standards, depending on the region and industry requirements. Understanding the differences is crucial for selecting the right motor for an organization’s particular use case.
NEMA is more common in North America and includes horsepower ratings. These nameplates focus on overload capacity and often include RPM ratings of 1,800, 2,600, or 1,200. NEMA motors are usually larger because they need higher safety margins and thermal protection.
IEC is a global standard that’s more popular in Europe and Asia. These nameplates are rated in kilowatts and focus more on efficiency. Most speed ratings are 1,500, 3,000, or 1,000 RPM. IEC motors tend to be smaller and focus more on energy savings.
Here’s a comparison table for a quick overview of the NEMA and IEC standards and how they differ:
| Feature | NEMA (North America) | IEC (International) |
| Rating System | Horsepower (HP) | Kilowatts (kW) |
| Speed Options | 1,800, 2,600, 1,200 RPM | 1,500, 3,000, 1,000 RPM |
| Focus | Overload capacity and safety margins | Efficiency and compact design |
| Common Applications | Larger, heavy-duty industrial motors | More energy-efficient, compact motors |
Motor nameplates often include Ingress Protection (IP) ratings and enclosure type details to indicate the motor’s ability to withstand environmental conditions. IP codes consist of two digits. The first number rates the motor’s protection against dust and debris on a scale of 0 to 6.
The second number signifies its moisture resistance on a scale of 0 to 9. For example, IP67 is waterproof up to several feet, while IP54 protects against limited dust and water.
NEMA also includes enclosure ratings in its environmental scoring system. It specifies open drip-proof (ODP) enclosures, which are best for indoor use only. Totally enclosed non-ventilated (TENV) enclosures are best for motors in hazardous conditions that don’t require cooling.
Some organizations follow sustainability requirements voluntarily, while others are legally required to follow them. As global regulations focus on reducing energy consumption, more electric motor manufacturers must comply with efficiency standards that align with sustainability goals.
NEMA Premium has requirements for high-efficiency motors, while IE3 and IE4 Efficiency Standards are common in Europe for sustainability compliance. Ecodesign Directive 2009/125/EC governs efficiency requirements for electric motors in Europe.
Opting for sustainable electric motors can lower operating costs. This strategy could also allow OEMs to access international markets with more stringent sustainability requirements.
In addition, long-lasting, durable nameplates, such as Metalphoto® anodized aluminum nameplates, support sustainability and cost savings by maintaining readability over decades.
Photo by Rafael Juárez from Unsplash
An electric motor nameplate provides critical information for proper installation, operation, and maintenance. However, errors in reading or interpreting nameplate data can lead to operational inefficiencies, equipment failures, and safety hazards. Below, we provide tips on how to avoid some of the most common electric motor nameplate errors.
If technicians connect the motor to the wrong voltage, it can cause overheating or failure. Technicians should always double-check the voltage rating on the nameplate before connecting power.
Nameplates often include wiring diagrams to prevent incorrect connections, as well. Employees can also ensure the correct voltage supply by using a multimeter.
Running a motor above its rated SF for extended periods can lead to excessive heat buildup and premature wear, leading to unexpected downtime and expensive replacements.
Instruct your team to avoid continuously operating motors at their SF limits. If your operation requires a higher load, install a motor with the appropriate rating for the use case.
Hasty wiring can lead to miswired motors that rotate in the wrong direction. This error is more common in three-phase motors, but it can still lead to mechanical issues.
For single-phase motors, check for directional wiring options on the nameplate. For three-phase motors, swap any two power leads to reverse rotation. Ask employees to confirm the rotation direction before they finalize the motor installation.
Electric motor nameplates are the backbone of motor identification, installation, and maintenance. However, misinterpreting or neglecting nameplate data can lead to costly errors, reduced performance, and premature motor failure.
OEMs, engineers, and maintenance teams can make informed decisions that enhance motor longevity and reliability by understanding key nameplate specifications—such as voltage, phase, service factor, enclosure type, and efficiency ratings.
Durability is also crucial in maintaining long-term readability. Choosing high-quality nameplates, such as MPC’s Metalphoto® anodized aluminum nameplates, is crucial. Metalphoto® is recognized as the most durable nameplate material available in the National Association of Graphic and Product Identification Manufacturers (GPI) Industry Standards and Practices Manual.
In addition, Metalphoto® outperformed 72 other materials evaluated across 38 simulated environmental durability tests in a study conducted by the U.S. Navy. Its exceptional durability ensures that critical data remains legible for the entire life of the motor, preventing miscommunication and costly troubleshooting errors.
See the MPC difference for yourself: Request a free label and nameplate evaluation kit now to see Metalphoto®’s quality firsthand.
If the nameplate is missing or unreadable:
The duty cycle tells you how long a motor can run before it needs a cooldown period. Continuous Duty (S1) means the motor can run indefinitely at full load.
Intermittent Duty (S2, S3, etc.), on the other hand, means the motor must rest after a certain period of operation.
A higher service factor (SF) means the motor can handle brief overloads, but it doesn’t mean it’s a direct replacement for a lower SF motor. While an SF of 1.15 or 1.25 allows for temporary overload, it shouldn’t be a substitute for proper motor sizing.
Consistently running a motor at or above its service factor can lead to excessive heat and a shorter lifespan. If the current motor is frequently overloaded, select a motor with a higher horsepower rating instead.
